Integra CDC-3.4

SPECIFICATIONS

Audio Performance

  • Error Correction System: Cross-Interleave Reed-Solomon Code (CIRC)
  • Multi-Bit D/A Converter: Wolfson 192 kHz / 24-Bit (x2)
  • Digital Filter: 128 Times Oversampling
  • Frequency Response: 5 Hz – 20 kHz
  • Harmonic Distortion: 0.005% (at 1 kHz)
  • Dynamic Range: 96 dB
  • Signal-to-Noise Ratio: 98 dB
  • Channel Separation: 92 dB (at 1 kHz)
  • Wow and Flutter: Below Threshold of Measurability

Audio Outputs

  • Optical: -22.5dBm Optical Connector
  • Coaxial: 0.5 V(p-p), 75Ω, RCA x 1
  • Analog: 2.0 V RMS, 470Ω, RCA x 1

General

  • Power Supply: AC 120 V, 60 Hz
  • Power Consumption: 10 W
  • Dimensions (W x H x D): 17-1/8” x 5-3/16” x 17-3/16” 435 x 131 x 436 mm
  • Weight: 15.2 lbs. (6.9 kg)
  • Optional Mounting Kit: IRK-120-3A
  • U Dimension: 4U

Carton

  • Dimensions (W x H x D): 21-1/4” x 9-3/4” x 21” 641 x 248 x 533 mm
  • Weight: 19 lbs. (8.6 kg)
Tags: , , ,

$400.00

Description

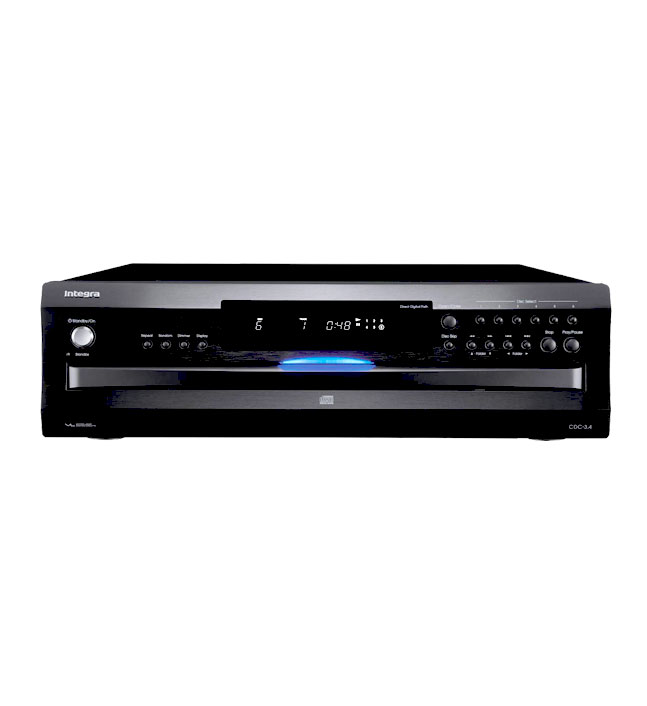

Integra CDC-3.4 CD Changer

Integra was the first company to offer an exclusive 6-disc carousel in a CD changer. Proudly, the tradition continues with the newly redesigned Integra CDC-3.4. It features smooth & quiet mechanical operation, plus a soft blue light which illuminates the disc tray for better visibility. As a result you can also load up to 5 discs while one is still playing for extended listening times without interruption.

Advanced Features:

The Integra CDC-3.4 uses Integra’s Original and Exclusive 6-Disc CD Carousel. Consequently this results in an Ultra Smooth and Quiet Disc Mechanism. The player features a Direct Digital Path. A Direct Shielded Cable provides connection to the Rear Panel

DAC:

The CDC-3.4 uses a high-quality Wolfson 192 kHz / 24-bit Digital to Analog Converter (x2). As a result, this Multi-bit Digital to Analog Converter allows flawless operation.

Signal Path:

The Integra CDC-3.4 has Vector Linear Shaping Circuitry (VLSC) for a Noise-free Signal Path. There is also Cross-Interleaved Reed-Solomon Code (CIRC) Error Correction and 128-times Oversampling for the best possible sound.

Uninterrupted Playback:

The changer allows you to change up to 5 Discs Without stopping playback.

Other Features:

The newly redesigned CD changer uses ID3 Tag Recognition to provide metadata to the display.  Additionally, it also features an Anti-Resonant Aluminum Front Panel for sturdy construction. The Illuminated Disc Tray allows convenient disc swaps.

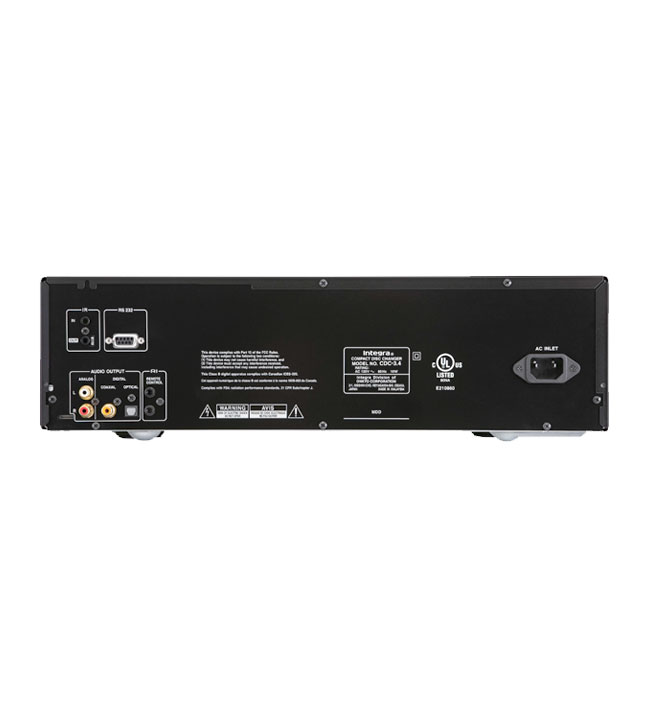

Connections:

The Integra CDC-3.4 has 2 Digital Outputs (1 Optical, 1 Coaxial) and an Analog Audio Output.  The outputs are in Parallel.  They are all simultaneously active. High-Quality Gold-Plated Terminals are used for Superior Signal Transmission.
